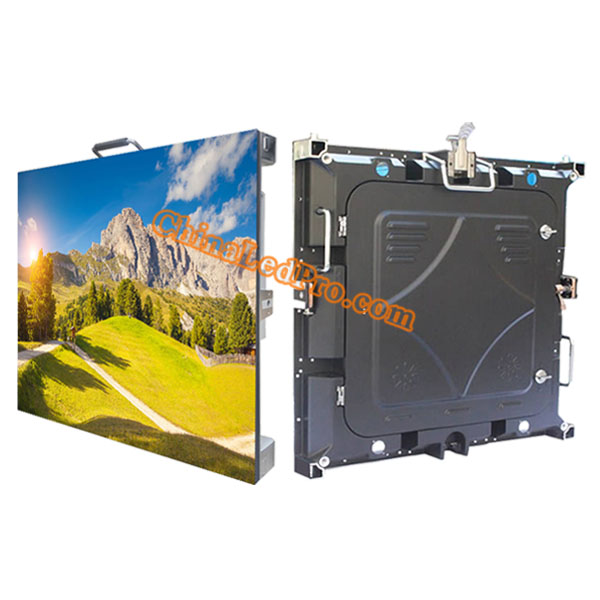

P6 SMD outdoor LED display panel is one of the most popular solutions for staging and rental applications in both indoor and outdoor environments thanks to its high resolution with close viewing distances, large viewing angles, weather resistance, light die casting panel with quick installation and dismantling, etc. The best price above is based on one panel size of 576x 576mm, EXW term. It is included with receiving card and necessary cables. The production time with aging test is 18 working days. The panel size and color can be customized.
Futures:
- High definition-27777 pixels, excellent white balance;
- High brightness and wide viewing angle, >6,000nits/sqm & 140°/140°(H/V);
- Die casting aluminum material,seamless connection;
- Super light and thin, only 13.5KG and 80mm thickness;
- Easy to set up and tear down with fast locks;
- Great protection rating, IP65-front side & IP54-rear side;
- Exquisite design with screw holes enables convenient maintenance;
- Perfect for both indoor and outdoor rental applications.
Specifications:
1. Pixel Pitch: 6mm
2. Pixel Density: 27,777 pixels/sq.m
3. Pixel Configuration / LED Type: 1R1G1B, SMD3535
4. LED Module Size (L*H): 192*192mm
5. LED Module Resolution: 32*32 pixels
6. LED Panel Size (L*H*D): 576*576*80mm
7. LED Panel Resolution: 96*96 pixels
8. LED Screen Panel Material: Die casting aluminum
9. LED Screen Panel Weight: 11KG
10. Brightness: ≥6,500 nits/sq.m
11. Brightness Control: 100 grades by software or auto sensor card
12. Driving Method: 1/8 scan
13. Viewing Angle: 140°H /140°V
14. Best Viewing Distance: >6M
15 Refresh Rate: ≥800Hz
16. Grey Scale: ≥8,192 levels
17. Display Color: ≥16.7M
18. Power Consumption: max.:980W/sq.m, avg.:392W/sq.m
19. Input Voltage:110~230V/AC (±10%)
20. Working Voltage: DC 5V
21. Input Power Frequency: 50/60Hz
22. Protection Rating: IP65/54 (front/rear)
23. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
24. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
25. Life Span (50% brightness): ≥100,000 hours
26. Available Control System : Linsn/NovaStar/Colorlight/Mooncell, etc
27. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
28. Operating System: Windows Series
29. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
30. Compliant Standard: CE/RoHS
