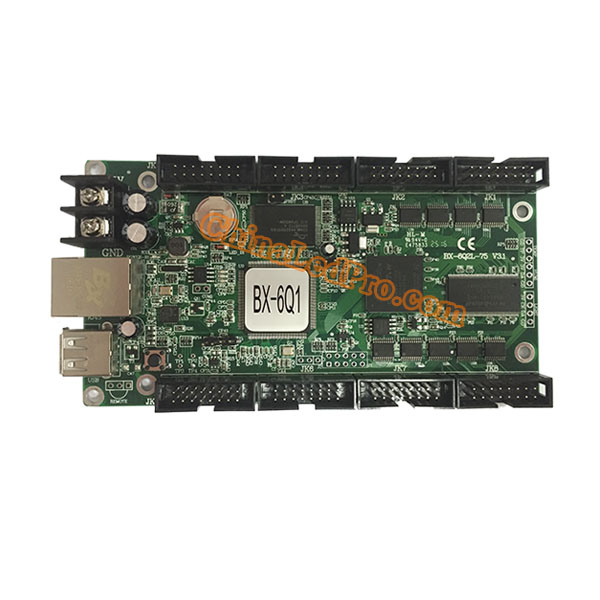

The BX-6Q lintel series full color LED display controller includes BX-6Q0 (75), BX-6Q1, BX-6Q2, BX-6Q3L, and BX-6Q3, which is mainly used for extra long door head/storefront full color LED sign screens and other customized projects
Support full color, support smart scan mode, compatible with all kinds of special modules and full-color modules;
Support system configuration and IP modification;
100M LAN port, USB port onboard, standard match with 512MB/4GB/ FLASH;
High refresh rate, high gray level, colorful image and moving smoothly;
Abundant background effect and colorful text, smooth video & animation displaying;
Support multi-group of dynamic areas, support update online(BX-6Q2/6Q3L/6Q3)
Match with BX-YY, support Chinese&English broadcasting( onboard RS232 is necessary )
Advantages:
(1)One screen matched with one card, easy installation, cost-efficient.
(2)6Q0/6Q1/6Q2 are customized for all kinds of full-color LED lintel screens and LED posters.
(3)6Q3L/6Q3 are customized for super-length full color LED lintel screen.
(4)6Q series are widely used in all kinds of customized projects and secondary development.
Disadvantages:
(1)When transformed program into uncompressed 16bit bitmap, will take a long time with a large amount of data, lower communication efficiency and especially more obvious when sending the long tables and videos.
(2)The Y04/Y08 have better performance than 6Q0/6Q1/6Q2 in the application of LED lintel screen, LED poster, and wifi/4G wireless cluster.
Y2L/Y2/Y3 performance will be better in the application of super-length LED lintel full-color screen. the Y series player will replace the 6Q series in the future.
(3)6Q series can not support the PWM chip.
USB transmission distance:
BX-6Q0/6Q1 /6Q2 adopts USB1.2 protocol with a speed of 12Mbit/S, the transmission distance ≤ 8 meters.
BX-6Q3L/6Q3 adopts USB2.0 protocol with a speed of 480Mbit/S, the transmission distance≤ of 5 meters.
The BX-6Q series is recommended to use a high-quality single shielded extension cable, without a connector in the middle.
Split mode instructions:
BX-6Q1 /6Q2 support split mode, which can make double refresh rate and better display.
Split mode wiring method: the controller is not in the middle of the screen, but should put in a quarter of the screen which closes to the data input end.
The cable length between the module and the controller should not exceed 3 meters when using split mode.
