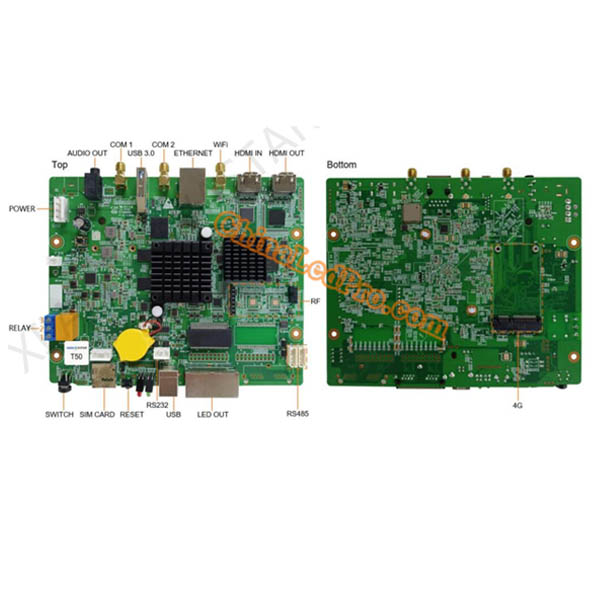

Novastar T50 TB50 LED Display Multimedia Player
The T50 is the third-generation multimedia player created by NovaStar for full-color LED displays. The T50 has an outer case. The TB50 has no outer case. This multimedia player integrates playback and sending capabilities, allowing users to release programs on the LED display screen and control it via a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the T50 enables users to manage LED displays from an Internet-connected device anywhere, anytime. Multi-screen synchronous playback and synchronous and asynchronous modes make this multimedia player a perfect fit for a wide range of applications.
Thanks to its reliability, ease of use, and intelligent control, the T50 has become a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.
T50 / TB50 Features
Output
Loading capacity up to 1,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels
2x Gigabit Ethernet ports
These two ports serve as primary by default.
Users can also set one as primary and the other as backup.
1x Stereo audio connector
The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the
external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar's multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support for HDMI loop
Input
1x HDMI 1.4 connector
In synchronous mode, video sources input from this connector can be scaled to fit the whole LED screen automatically.
2x sensor connectors
Connect to brightness sensors or temperature and humidity sensors.
Control
1x USB 3.0 (Type A) port
Allows for playback of content imported from a USB drive and firmware upgrade over USB.
1x USB (Type B) port
1x USB (Type B) port
Reserved
1x Gigabit Ethernet port
Connects to a LAN, public network, or computer for content publishing and screen control.
Performance
Powerful processing capacity
− Quad-core ARM A55 processor @1.8 GHz
− Support for H.264/H.265 4K@60Hz video decoding
− 1 GB of onboard RAM
− 16 GB of internal storage
Flawless playback
1x 4K video playback or 2x 1080p video playback
Function
All-round control plans
− Enables users to publish content and
control screens from a computer, mobile phone, or tablet.
− Allows users to publish content and control screens from anywhere, anytime.
− Allows users to monitor screens from anywhere, anytime.
Switching between Wi-Fi AP and Wi-Fi STA
− In Wi-Fi AP mode, the user terminal
connects to the built-in Wi-Fi hotspot of the
T50. The default SSID is “AP+Last 8 digits
of SN” and the default password is 12345678.
In Wi-Fi STA mode, the user terminal and the T50 are connected to the Wi-Fi hotspot of a router.
Synchronous and asynchronous modes
− In asynchronous mode, the internal video source works.
− In synchronous mode, the video source input from the HDMI connector works.
Synchronous playback across multiple screens
− NTP time synchronization
− GPS time synchronization (The specified 4G module must be installed.)
− RF time synchronization (The specified RF module must be installed.)
Support for 4G modules
The T50 ships without a 4G module. Users have to purchase 4G modules separately if needed.
Network connection priority: Wired network > WiFi network > 4G network When multiple types of networks are available, the T50 will choose a signal automatically according to the priority.
