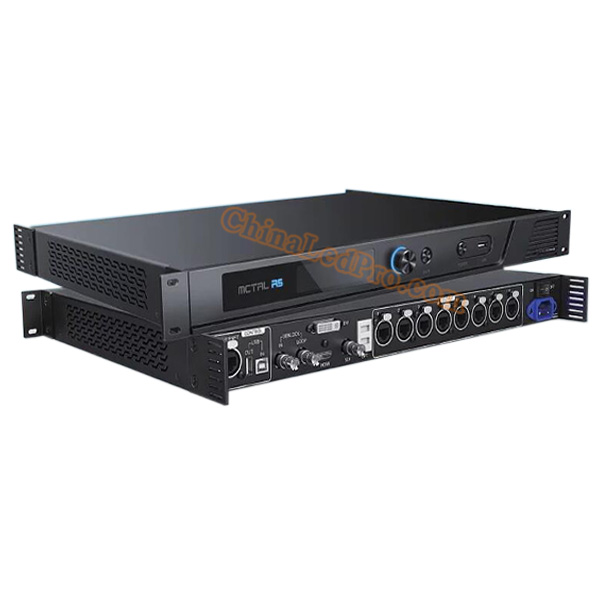

Novastar MCTRL R5 is an independent master controller developed by NovaStar
with an epoch-making significance. The loading capacity of a single unit
is up to 3840x1080@60Hz, which is able to meet the on-site
requirements of oversized LED displays. MCTRL R5 makes it easier to
create stunning rotation visual effects for users.
NOVA MCTRL R5 also can be used as two independent Full-HD controllers,
which makes it more flexible to load LED displays.
The design of MCTRL R5 is innovative. It allows to configure a display at
any time without PC.
Various video inputs such as HDMI, dual-link DVI,SDI etc. and outputs of
8-channel Neutrik Gigabit Ethernet ports as well as 2-channel optical
fiber ports are supported.
NOVA MCTRL R5 Features:
1) Complete video input interfaces: 6G SDI, HDMI1.4 x 1, dual-link DVI x
1;
2) Supports 8-channel Neutrik Gigabit Ethernet outputs and 2-channel
optical fiber outputs and maximum loading capacity of a single unit
up to 3840x1080@60Hz;
3) Image rotation can be realized at any area in the screen with any
angle. It will much eaiser with cabinet, ports and screen rotation
operation.
4) Innovative design to enable smart configuration which has greatly
shortened the time for stage preparation;
www.novastar.tech 2
5) NovaStar's G4 engine to create stable and flicker-free pictures without
scanning lines, and bring smooth images with a good sense of
layering;
6) Supports NovaStar's latest pixel-by-pixel calibration technology, the
process of which is fast and efficient;
7) Enables white balance calibration and color gamut mapping based on
the different features of LEDs on the display to ensure the real
restoration of color;
8) Screen configuration can be done at any time without PC;
9) Manual adjustment of screen brightness, which makes it much easier
and quicker;
10) Multiple controllers are able to be cascaded for uniform control.
